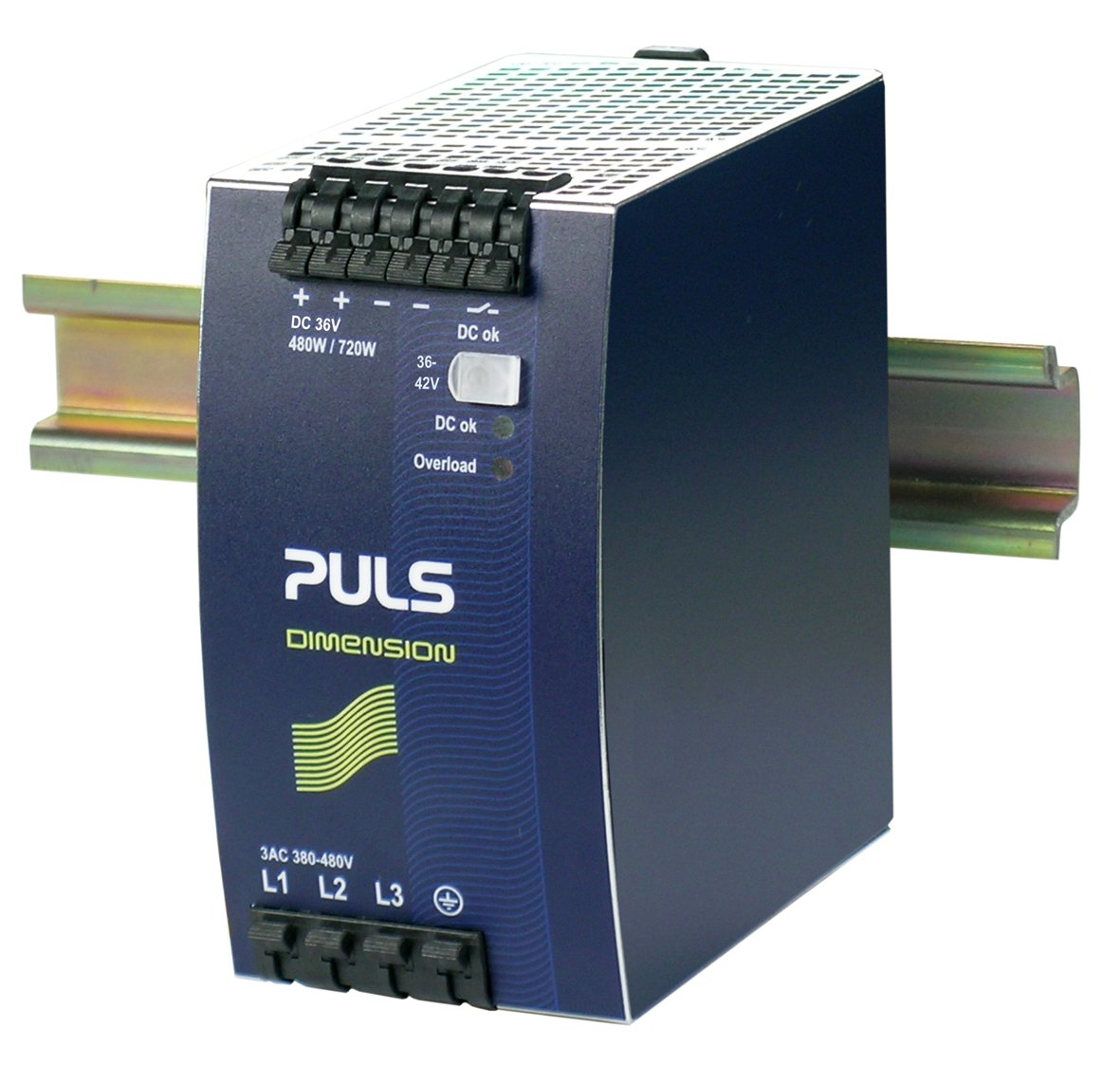

QT20.361

DIN-rail power supplies for 3-phase systems
36V, 13.3A


  • 3AC 380-480V Wide-range Input
  • ƒAlso Specified for 2-Phase Operation
  • ƒ94.8% Full Load and Excellent Partial Load Efficiencies
  • ƒWidth only 65mm, Weight only 870g
  • ƒ50% BonusPower ® , 720W for up to 4s
  • ƒActive Power Factor Correction PFC
  • ƒActive Filtering of Input Transients
  • ƒFull Power Between -25°C and +60°C
  • ƒExtremely Low Input Inrush Current Surge
  • ƒDC-OK Relay Contact
  • ƒQuick-connect Spring-clamp Terminals
DC Output 36-42Vdc
  13.3-11.4A
  480W
Input AC 380-480V  (± 15%)

Size (WxHxD) 65 x 124 x 127mm
Weight 870g
Order information Stock Item

Approvals

UL 508 Listed USAUL 508 Listed CanadaUL 60950-1 USAUL 60950-1 CanadaIEC 60950 CB SchemeEU Declaration of ConformityMarine  GLMarine ABSClass I Div. 2 USA - CSAClass I Div. 2 Canada - CSAEAC (Russia, Kazakhstan and Belarus)
