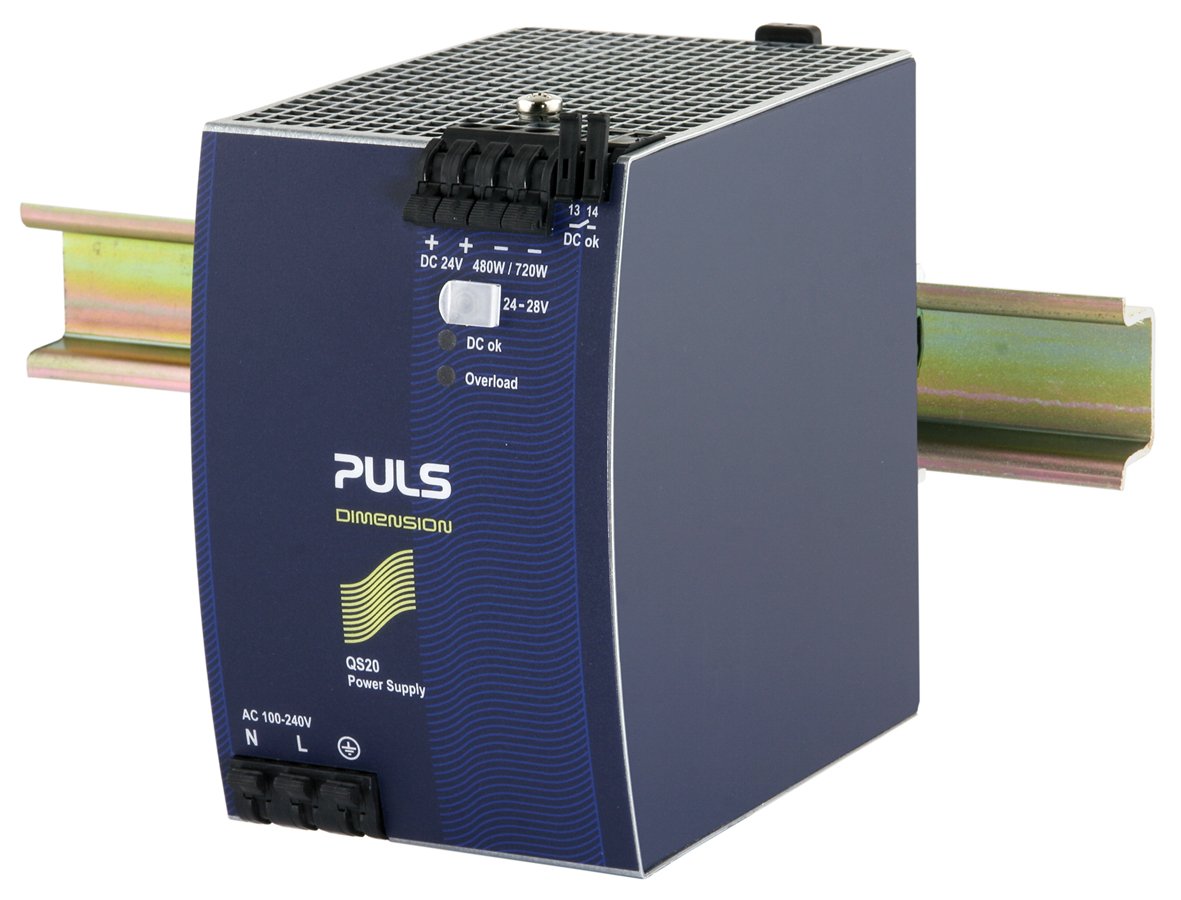

QS20.241-C1
Quantity
QS20.241-C1
DIN-rail power supplies for 1-phase systems24V, 20A
- AC 100-240V wide-range input
- Width only 82mm
- Efficiency up to 93.9%
- 150% (720W) peak load capability
- Safe Hiccup PLUS overload mode
- Easy fuse tripping due to high overload current
- Active power factor correction (PFC)
- Negligible low inrush current surge
- Short-term operation down to 60Vac and up to 300Vac
- Full power between -25°C and +60°C
- DC-OK relay contact
- Quick-connect spring-clamp terminals
- conformal coated PC-board
| DC Output | 24-28Vdc |
| 20-17A | |
| 480W | |
| Input | AC 100-240V (± 15%) |
| DC 110V-150V (-20%/+25%) | |
| Size (WxHxD) | 82 x 124 x 127mm |
| Weight | 1200g |
| Order information | Stock Item |
Approvals
