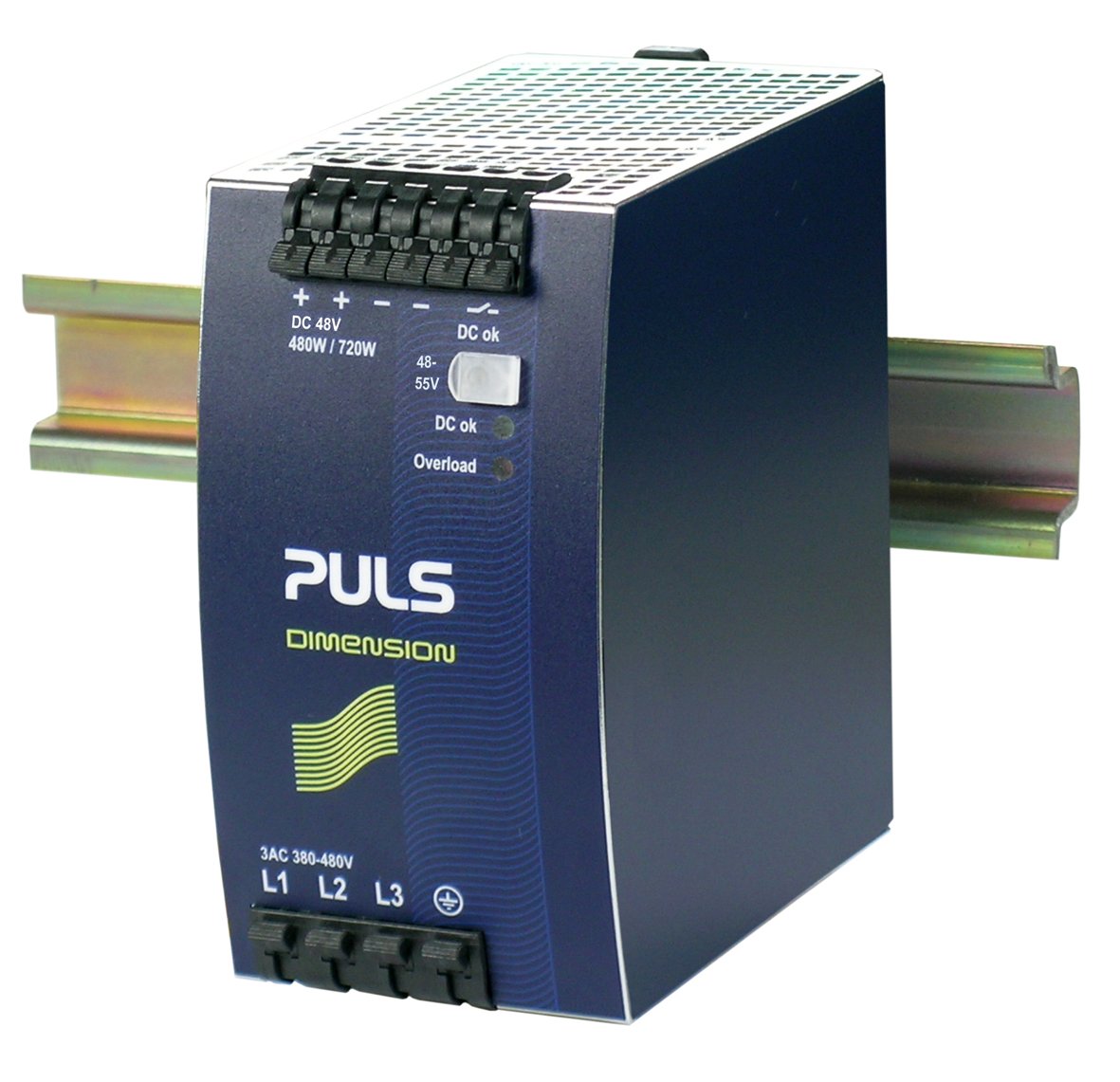

QT20.481

DIN-rail power supplies for 3-phase systems
48V, 10A


  • 3AC 380-480V Wide-range Input
  • Also Specified for 2-Phase Operation
  • 95.4% Full Load and Excellent Partial Load Efficiencies
  • Width only 65mm, Weight only 870g
  • 50% BonusPower ® , 720W for up to 4s
  • Active Power Factor Correction PFC
  • Active Filtering of Input Transients
  • Full Power Between -25°C and +60°C
  • Extremely Low Input Inrush Current Surge
  • DC-OK Relay Contact
  • Quick-connect Spring-clamp Terminals
DC Output 48-55Vdc
  10-8.7A
  480W
Input AC 380-480V  (± 15%)

Size (WxHxD) 65 x 124 x 127mm
Weight 870g
Order information Stock Item

Approvals

UL 508 Listed USAUL 508 Listed CanadaUL 60950-1 USAUL 60950-1 CanadaIEC 60950 CB SchemeEU Declaration of ConformityMarine  GLMarine ABSClass I Div. 2 USA - CSAClass I Div. 2 Canada - CSAEAC (Russia, Kazakhstan and Belarus)
